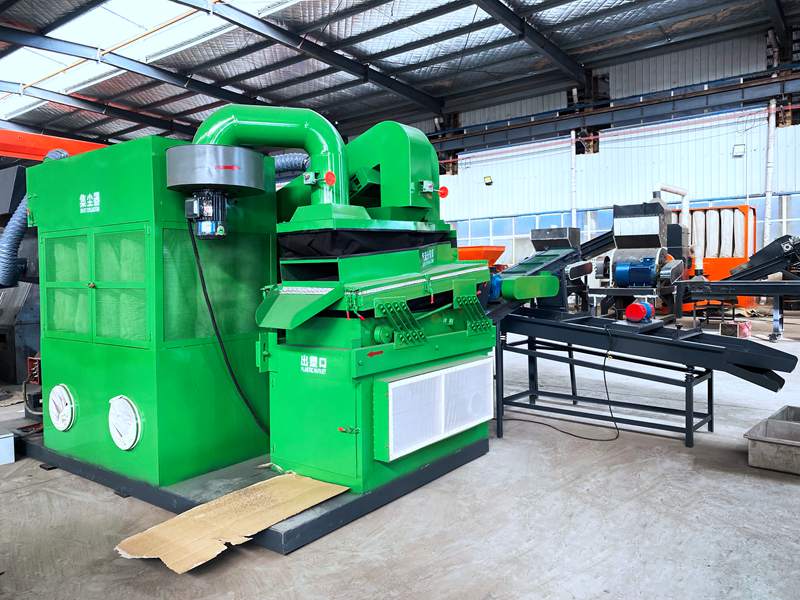

Air gravity separator

Air Gravity Separator mainly uses the principle of different specific gravity of different materials to sort copper and plastic in waste wires. It is a relatively advanced waste wire recycling equipment.

Overview

Our air gravity separator machine is mainly used to make the double recycling use of metal and plastics from scrap wires. Used for various automotive wires, motorcycle lines. Battery Bicycle wires. TV wires, washing machines and refrigerator wires, air conditioners and other household appliances, telecommunications wires, computer wires, etc.

Application

It is applicable to all kinds of metal and non-metallic separation, powder materials, granular materials and mixed materials, which are separated and sorted according to gravity, particle size or shape. It is used in grain selection and impurity removal, beneficiation, chemical engineering, waste wires copper and plastics sorting, waste circuit boards copper powder and resin powder sorting, separation and reuse of waste metal with specific gravity difference and waste plastics with specific gravity difference and other industries.

Features

1. By using the principle of air suspension, the equipment makes the materials with specific gravity difference suspend and stratify, and it can sort the materials with different specific gravity by fish scale shaped screen surface friction and material self weight angle flow.

2. The separation accuracy and fineness are high, the sorting range is wide, and the range of sorting can be adjusted arbitrarily between 50mm-200 meshes.

3. The sorting efficiency is high and the application range is wide.

4. The automatic air circulation is adopted, set sorting and collection in one, simple and compact structure, and it is equipped with pulse dust removal equipment to ensure that there is no dust overflow in the sorting process.

 5. Long service life; easy to install and maintain.

Technical Parameters
